HT-01 is overseas special model.
（HT-01 is not available to purchase in Japan.）
REVIVAL OF A LEGEND
HT-01 Driver Design Features

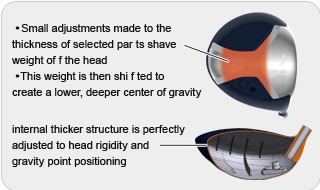

1. Gravity Point Design
・This gravity point design facilitates high trajectory and draw shots, and cuts down on excessive ball hugging for excellent control.
・A wide face area reduces distance loss on
off-center shots.

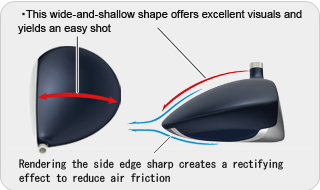

2. Head Design
HT-01 FW Design Features

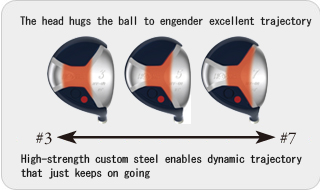

1. Gravity point flow by number
Each number is given the right gravity point position to help achieve optimal trajectory.

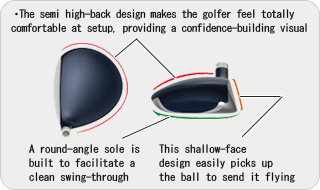

2. Head Design
The semi high-back design makes the golfer feel totally comfortable at setup, providing a confidence-building visual.
HT-01 Shaft
1. Development Concept
This shaft is designed for better and better carry, even as the price is kept to a minimum Shaft facilitates high trajectory.
2. Attributes
Better carry distance is made possible by a high-trajectory, low-spin design. Though lightweight, the shaft's four-axis carbon ensures a solid, accurate swing. AP layers at the tip minimizes shaking on impact.
Men's
Head Color: Fine Gold
Ring (Parts): Pt1000+K24 Ring
Head Color: Sepia Gold
Ring (Parts): GP Ring
Head Color: Pearl Fine Blue Black
- HT Cord II 48 Gold 5S
- HT Cord II 48 Gold 4S
- HT Cord 48 Silver
- 5S
- 4S
- 2S
Club Specification
| Number | 1/W | 3/W | 5/W | 7/W | |
|---|---|---|---|---|---|
| 10deg. | |||||
| Length(inch) | 45.5 | 43.0 | 42.5 | 42.0 | |
| Swing Weight | R | D1 | D0 | D0 | D0 |
| S | D2 | D1 | D1 | D1 | |
| Total Weight (g) | R | 288 | 303 | 306 | 309 |
| S | 291 | 306 | 309 | 312 | |
| Distance to Center of Gravity(mm) | 39.0 | 31.0 | 32.0 | 32.0 | |
| Height to Center of Gravity(mm) | 35.5 | 24.0 | 24.5 | 25.0 | |
| Depth to Center of Gravity(mm) | 38.5 | 31.5 | 31.0 | 31.0 | |
| Gravity Angle(deg.) | 26.0 | 25.0 | 23.0 | 21.5 | |
| The Moment of Inertia (g-ｃ㎡） |
4400 | 2600 | 2550 | 2400 | |
Remarks: Please note that mean value measurement may differ from actual value measurement to some extent.
Head Specification
| Material of Head | #1 | Body | 6-4 Titanium | Face | 6-4 Titanium | F/W | Body | SUS630 | Face | Hi-Strength Custom Steel |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturing Technique | #1 | Body | Casting | Face | Rolling | F/W | Body | Casting | Face | Rolling |
| Head Color | 5S/Fine Gold ・ 4S/Sepia Gold ・ 2S/Pearl Fine Blue Black | |||||||||
| Ring | 5S/Pt1000+K24 Ring ・ 4S/GP Ring | |||||||||
| Number | 1/W | 3/W | 5/W | 7/W |
|---|---|---|---|---|
| Loft Angle (deg.) | 10deg. | 15deg. | 18deg. | 21deg. |
| Head Volume (cc) | 460 | 172 | 153 | 145 |
| Lie Angle (deg.) | 60.0 | 59.5 | 60.0 | 60.5 |
| Face Angle (deg.) | H0.5 | H0.5 | 0.0 | S0.5 |
Shaft Specification
| Model | 5S |
|---|---|
| Material | Carbon+ UDSOF |
| Flex | R / S |
| Number | 1/W | 3/W | 5/W | 7/W ※ | |
|---|---|---|---|---|---|
| Shaft Weight(g) | R | 50.0 | 50.0 | 49.5 | 49.0 |
| S | 52.0 | 52.0 | 51.5 | 51.0 | |
※ 7/W will be launched around early of July.
| Model | 4S |
|---|---|
| Material | Carbon + UDSOF |
| Flex | R / S |
| Number | 1/W | 3/W | 5/W | 7/W ※ | |
|---|---|---|---|---|---|
| Shaft Weight(g) | R | 50.0 | 50.0 | 49.5 | 49.0 |
| S | 52.0 | 52.0 | 51.5 | 51.0 | |
※ 7/W will be launched around early of July.
| Model | 2S |
|---|---|
| Material | Carbon+ UDSOF |
| Flex | R / S |
| Number | 1/W | 3/W | 5/W | 7/W ※ | |
|---|---|---|---|---|---|
| Shaft Weight(g) | R | 50.0 | 50.0 | 49.5 | 49.0 |
| S | 52.0 | 52.0 | 51.5 | 51.0 | |
※ 7/W will be launched around early of July.
Grip Specification
| Model | 5S - GP - Mole Mark P |
|---|---|
| Material | Rubber Cord |
| Weight | 38.5g |
| Model | 4S - GP - Mole Mark P |
|---|---|
| Material | Rubber Cord |
| Weight | 38.5g |
| Model | 2S - GP - Mole Mark P |
|---|---|
| Material | Rubber Cord |
| Weight | 39g |
Ladies
Head Color: Fine Gold
Ring (Parts): Pt1000+K24 Ring
Head Color: Sepia Gold
Ring (Parts): GP Ring
Head Color: Fine Red
- HT Rubber II 32 Gold
- HT Rubber II 32 Gold
- HT Rubber 32 Silver
- 5S
- 4S
- 2S
Club Specification
| Number | 1/W | 3/W | 5/W | 7/W | |
|---|---|---|---|---|---|
| 11deg. | |||||
| Length(inch) | 44.25 | 41.75 | 41.25 | 40.75 | |
| Swing Weight | L | C-3 | C-1 | C-1 | C-1 |
| Total Weight (g) | L | 267 | 279 | 282 | 286 |
| Distance to Center of Gravity(mm) | 41.0 | 31.0 | 31.5 | 31.5 | |
| Height to Center of Gravity(mm) | 36.5 | 24.0 | 24.0 | 24.5 | |
| Depth to Center of Gravity(mm) | 38.0 | 31.0 | 31.0 | 31.0 | |
| Gravity Angle(deg.) | 24.0 | 25.0 | 23.0 | 21.5 | |
| The Moment of Inertia (g-ｃ㎡) |
4200 | 2400 | 2350 | 2300 | |
Remarks: Please note that mean value measurement may differ from actual value measurement to some extent.
Head Specification
| Material of Head | #1 | Body | 6-4 Titanium | Face | 6-4 Titanium | F/W | Body | SUS630 | Face | Hi-Strength Custom Steel |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturing Technique | #1 | Body | Casting | Face | Rolling | F/W | Body | Casting | Face | Rolling |
| Head Color | 5S/Fine Gold ・ 4S/Sepia Gold ・ 2S/Fine Red | |||||||||
| Ring | 5S/Pt1000+K24 Ring ・ 4S/GP Ring | |||||||||
| Number | 1/W | 3/W | 5/W | 7/W |
|---|---|---|---|---|
| Loft Angle (deg.) | 11deg. | 16deg. | 19deg. | 22deg. |
| Head Volume (cc) | 460 | 155 | 145 | 137 |
| Lie Angle (deg.) | 60.5 | 60.0 | 60.5 | 61.0 |
| Face Angle (deg.) | H1.5 | H1.0 | H0.5 | H0.5 |
Shaft Specification
| Model | 5S |
|---|---|
| Material | Carbon+ UDSOF |
| Flex | L |
| Number | 1/W | 3/W | 5/W | 7/W ※ | |
|---|---|---|---|---|---|
| Shaft Weight(g) | L | 40.5 | 40.5 | 40 | 39.5 |
※ 7/W will be launched around early of July.
| Model | 4S |
|---|---|
| Material | Carbon + UDSOF |
| Flex | L |
| Number | 1/W | 3/W | 5/W | 7/W ※ | |
|---|---|---|---|---|---|
| Shaft Weight(g) | L | 40.5 | 40.5 | 40 | 39.5 |
※ 7/W will be launched around early of July.
| Model | 2S |
|---|---|
| Material | Carbon+ UDSOF |
| Flex | L |
| Number | 1/W | 3/W | 5/W | 7/W ※ | |
|---|---|---|---|---|---|
| Shaft Weight(g) | L | 40.5 | 40.5 | 40 | 39.5 |
※ 7/W will be launched around early of July.
Grip Specification
| Model | 5S - GP - Mole Mark P |
|---|---|
| Material | Rubber |
| Weight | 32g |
| Model | 4S - GP - Mole Mark P |
|---|---|
| Material | Rubber |
| Weight | 32g |
| Model | 2S - GP - Mole Mark P |
|---|---|
| Material | Rubber |
| Weight | 32g |
