This ideal, high-performance shaft was developed based on prototype club impressions
and on data gathered from the feedback of the professional tour players.

A variation of weight and the flex is presented abundantly by each three characters.

Achieve strong trajectory which satisfy the needs of the serious golfers.

21 victories around the world 21 victories around the world

It was released under the concept of the club where professionals can actually use to flight through the tournament.
Many contracts pros have used it in the tournaments and achieved 13 wins on tours around the world in 2014.

CONCEPTCONCEPT

VIZARD
The shaft function side revised to meet the various demands of top professionals.
The exclusive shaft of TOUR WORLD which adopted the needs of a tour pro and the top amateur.A variation of weight and the flex is presented by three kinds of each of the character differences.
TORAY CA
Note: These products use carbonfiber from Toray Industries, Inc.
This shaft designed for serious golfers.
Using Prepreg sheet made with YARN, the new material.
The outermost layer of the shaft butt on the new VIZARD (YA/YC/YZ) features YARN Prepreg sheet, a cutting-edge material highly resistant to cylindrical compression. This controls compression of the shaft during cutover and downswing, and by stabilizing launch, enables a more accurate impact. Use of high-strength YARN Prepreg sheet also expands freedom of shaft design, making it possible to develop shafts that meet a wide range of requests from top professional players.
YARN
A cutting-edge material
resistant to cylindrical compression*,
developed by Nissei Co., Ltd.
*Compression strength improved by
about 19%
(compared to previous TZ model).

SHAFT TECHNOLOGYSHAFT TECHNOLOGY

WOOD

The evolution of the pull-style TA shaft
This is a stiffer shaft, designed with a highly rigid mid-point and butt but milder rigidity in the end of the shaft. The design maintains the character of the TA shaft, while high-strength YARN Prepreg lamination controls mid-swing compression without altering flexural rigidity, enabling even greater distance with greater pull and ease of swing.

Professional’s comment
“The head really gets momentum—I’ve never seen a club that grabs the ball so well.”

The evolution of the TC shaft,
offering both pull and control
The evolution of the TC shaft, offering both pull and control
This design maintains the character of the TA shaft, with hitting power at shaft mid-point, good ball grip and stiffness at the end, and ease of timing in the butt. The addition of high-strength YARN Prepreg lamination helps control swing delay due to shaft compression and curbs shaft flattening or loss of angle, enabling stable directionality and improved distance performance.

Professional’s comment
"The club has stronger pull, and surprisingly gets on the ball easily without slicing to the left. Distance and direction are both perfect."

The evolution of the tenacious TZ shaft
This design maintains the character of the TZ shaft, with high rigidity in the shaft mid-point and end, and milder rigidity in the butt. The addition of high-strength YARN Prepreg lamination helps control swing delay due to shaft compression and curbs shaft flattening and loss of angle. This results in an athlete’s shaft, with a stable return flex that allows for solid hitting without fear of hooking the ball to the left.

Professional’s comment
"My distance has improved thanks to the ease of timing and the ability to hit knowing the ball won’t go left."

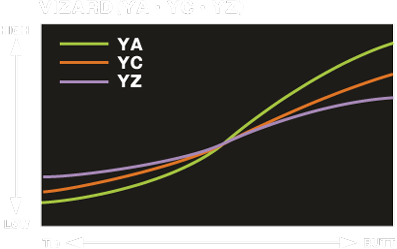

sp_yz_img

Used by many professtional golfers,
this prototype, designed to address their needs,
is now ready for the public. It emphasizes stable trajectory height and carry distance.
Used by many professtional golfers, this prototype, designed to address their needs, is now ready for the public. It emphasizes stable trajectory height and carry distance.
This specialized UT shaft features a host of features that meet the requirements of golfers playing on the most challenging course settings. Designing the butt end with just the right mild degree of rigidity creates cutover timing, improving playability and enhancing control. Providing greater rigidity in the shaft end versus the butt stabilizes loft at impact and curbs variation in trajectory height and distance.

Professional’s comment
"It enables me to control trajectory the way I want to."

IRON

Model used by Hideto Tanihara
An extra-heavy shaft designed for professional players on the tour, this model offers both the gentler feel of a carbon shaft and the strength and playability of a steel shaft.
Hideto Taniahara comment
"With high trajectory and good ball carry, this is so easy to hit, and the ball never veers left. It delivers distance, but consistency means I can target the pin dead-on."
The IB tour pros have wanted, characterized by tenaciousness
By laminating the outermost layer of the shaft end with amorphous metal fiber, an amorphous metal fiber characterized by its strength and toughness (tenacity), this iron, extra-weighted on the end, offers the strength of impact and excellent playability of a steel shaft, along with the ease of swing found in a carbon shaft.
Amorphous metal fiber
A strong, though, heavy metal fiber developed by UNITIKA, Ltd., offering both strength and flexibility.
Amorphous metal fiber
A strong, though, heavy metal fiber developed by UNITIKA, Ltd., offering both strength and flexibility.
General weight-based carbon shaft
"Quantity of carbon increases as laminating layer increase, making the shaft heavier by weight, and increases the number of vibrations drastically. As a result, the carbon will be much harder compare with a steel shaft. Because the balance point comes at upper side of the grip, it is easy to hit at a high trajectory, and is easy to catch the ball. On the other hand, it is weak with hard impact and causes inferior in the operability and flying distances."
Steel shaft
The feature is that the tip bending stiffness is high, and the behavior of the tip is suppressed and is superior in strength and the operability. On the other hand, because its heavy weight that is hard to caught the ball.
VIZARD IB
"It raised tip bending stiffness in comparison with other parts by using amorphous metal fiber metal characterized by high strength. Its like a steel shaft, superior in operability without losing power at impact. In addition, it can reduce laminating of the carbon to make shaft weight because this sheet has heavier specific gravity than carbon. The epoch-making shaft which had bothmerits of ""strength, the operability of a steel shaft"" and result ""swing with ease like thecarbon shaft."

WEDGE

The shaft specailly designed for wedge.
In order to meet the demands of professional golfer Hideto Tanihara, who indicated that he wanted us to produce a shaft that would allow him to hit balls on a low trajectory and feel as if the ball were riding on the face of the head, we modified the VIZARD IB, a weighted carbon shaft for irons, into a shaft designed especially for wedge clubs. By increasing the stiffness of the tip and moderating the stiffness of the grip, balls can be hit with power, the loft at impact operates in accordance with the standing direction of the golfer, and exceptional spin performance is rendered.
Hideto Tanihara's comment
I have repeatedly tested this shaft since last year and can definitely say with pleasure that a shaft has been produced to my satisfaction. It feels as if the ball is riding on the face of the head. And with a low trajectory, the ball spins incredibly well. I intend to use both the AW and SW options on the tour this season.

IRON

Carbon shaft used by Bo-Mee Lee
Carbon shaft used by Bo-Mee Lee
This shaft is the realization of feedback from women professionals who want high trajectory while targeting the pin dead-on.
Milder rigidity at the end of the shaft provides higher trajectory and improves grip on the ball (versus the previous model).
Bo-Mee Lee comment
"It just carries the ball so easily, and I can target the pin dead-on."

SHAFT SPECSHAFT SPEC

VIZARD YA

YA85 Available for order
Material Carbon+YARN
Kick-point Mid
Flex S X
Butt diameter(mm) 15.7 15.8
Tip diameter(mm) 8.6
Weight(g) 82.5 85.5
Torque(°) 3.05 2.95
Frequency(cpm) 294 310
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YA75
Material Carbon+YARN
Kick-point Mid
Flex S X
Butt diameter(mm) 15.7 15.8
Tip diameter(mm) 8.6
Weight(g) 71.5 74.5
Torque(°) 3.45 3.35
Frequency(cpm) 289 305
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YA65
Material Carbon+YARN
Kick-point Mid
Flex SR S X
Butt diameter(mm) 15.6 15.6 15.7
Tip diameter(mm) 8.6
Weight(g) 62.5 64.0 67.0
Torque(°) 3.9 3.85 3.75
Frequency(cpm) 279 287 303
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YA55
Material Carbon+YARN
Kick-point Mid
Flex R SR S
Butt diameter(mm) 15.4 15.4 15.5
Tip diameter(mm) 8.6
Weight(g) 54.0 55.5 57.0
Torque(°) 4.35 4.3 4.25
Frequency(cpm) 258 266 274
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W

VIZARD YC

YC85 Available for order
Material Carbon+YARN
Kick-point Mid
Flex S X
Butt diameter(mm) 15.7 15.8
Tip diameter(mm) 8.6
Weight(g) 81.5 84.5
Torque(°) 3.05 2.95
Frequency(cpm) 287 303
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YC75
Material Carbon+YARN
Kick-point Mid
Flex S X
Butt diameter(mm) 15.7 15.8
Tip diameter(mm) 8.6
Weight(g) 71.5 74.5
Torque(°) 3.45 3.35
Frequency(cpm) 282 298
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YC65
Material Carbon+YARN
Kick-point Mid
Flex SR S X
Butt diameter(mm) 15.6 15.6 15.7
Tip diameter(mm) 8.6
Weight(g) 62.5 64.0 67.0
Torque(°) 3.9 3.85 3.75
Frequency(cpm) 272 280 296
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YC55
Material Carbon+YARN
Kick-point Mid
Flex R SR S
Butt diameter(mm) 15.4 15.4 15.5
Tip diameter(mm) 8.6
Weight(g) 53.0 54.5 56.0
Torque(°) 4.35 4.3 4.25
Frequency(cpm) 252 260 268
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W

VIZARD YZ

YZ85 Available for order
Material Carbon+YARN
Kick-point High
Flex S X
Butt diameter(mm) 15.7 15.8
Tip diameter(mm) 8.6
Weight(g) 83.0 86.0
Torque(°) 3.0 2.9
Frequency(cpm) 286 302
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YZ75
Material Carbon+YARN
Kick-point High
Flex S X
Butt diameter(mm) 15.6 15.7
Tip diameter(mm) 8.6
Weight(g) 73.5 76.5
Torque(°) 3.4 3.3
Frequency(cpm) 282 298
Installation model TW727 430、TW727 455
TW727 455s、TW727 460
Data refers to the 1W
YZ65
Material Carbon+YARN
Kick-point High
Flex SR S X
Butt diameter(mm) 15.6 15.6 15.7
Tip diameter(mm) 8.6
Weight(g) 63.5 65.0 68.0
Torque(°) 3.85 3.8 3.7
Frequency(cpm) 269 277 293
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W
YZ55
Material Carbon+YARN
Kick-point High
Flex R SR S
Butt diameter(mm) 15.5 15.5 15.6
Tip diameter(mm) 8.6
Weight(g) 56.0 57.5 59.0
Torque(°) 4.3 4.25 4.2
Frequency(cpm) 254 262 270
Installation model
  • TW727 430、TW727 455
    TW727 455s、TW727 460
Data refers to the 1W

VIZARD UT

UT95
Material Carbon
Kick-point High
Butt diameter(mm) 15.6
Tip diameter(mm) 9.3
Weight(g) 92.0
Torque(°) 2.45
Frequency(cpm) 348
Installation model TW727 UT
Data refers to the UT/19
UT85
Material Carbon
Kick-point High
Butt diameter(mm) 15.5
Tip diameter(mm) 9.3
Weight(g) 82.0
Torque(°) 2.8
Frequency(cpm) 331
Installation model TW727 UT
Data refers to the UT/19
UT75
Material Carbon
Kick-point High
Butt diameter(mm) 15.5
Tip diameter(mm) 9.3
Weight(g) 73.0
Torque(°) 3.0
Frequency(cpm) 327
Installation model TW727 UT
Data refers to the UT/19
UT65
Material Carbon
Kick-point High
Butt diameter(mm) 15.5
Tip diameter(mm) 9.3
Weight(g) 65.0
Torque(°) 3.3
Frequency(cpm) 318
Installation model TW727 UT
Data refers to the UT/19
UT55
Material Carbon
Kick-point High
Butt diameter(mm) 15.5
Tip diameter(mm) 9.3
Weight(g) 55.0
Torque(°) 3.6
Frequency(cpm) 304
Installation model TW727 UT
Data refers to the UT/19
UT850
Material Carbon
Kick-point Mid
Butt diameter(mm) 15.6
Tip diameter(mm) 9.3
Weight(g) 82.0
Torque(°) 2.8
Frequency(cpm) 337
Installation model TW-U
Data refers to the #3.

VIZARD IB

IB105
Material Carbon + Amorphous matal fiber
Kick-point High
Flex S X
Butt diameter(mm) 15.6
Tip diameter(mm) 9.3
Weight(g) 103.5 105
Torque(°) 2.8 2.75
Frequency(cpm) 333 341
Installation model TW727 M
Data refers to the #5.
IB95
Material Carbon + Amorphous matal fiber
Kick-point High
Flex S X
Butt diameter(mm) 15.6
Tip diameter(mm) 9.3
Weight(g) 94.0 95.5
Torque(°) 3.0 2.95
Frequency(cpm) 328 336
Installation model
  • TW-BM、TW727 Vn、
    TW727 V
Data refers to the #5.
IB85
Material Carbon + Amorphous matal fiber
Kick-point High
Flex SR S X
Butt diameter(mm) 15.5 15.6 15.6
Tip diameter(mm) 9.3
Weight(g) 82.5 84.0 85.5
Torque(°) 3.25 3.2 3.15
Frequency(cpm) 308 316 324
Installation model
  • TW727 P
Data refers to the #5.

VIZARD IB 95W

IB105wAvailable for order
Material Carbon + Amorphous matal fiber
Kick-point High
Butt diameter(mm) 15.4
Tip diameter(mm) 9.3
Weight(g) 99.0
Torque(°) 2.3
Frequency(cpm) 382
Installation model TW-W
Date refers to the shaft only.
IB95w
Material Carbon + Amorphous matal fiber
Kick-point High
Butt diameter(mm) 15.3
Tip diameter(mm) 9.3
Weight(g) 90.0
Torque(°) 2.5
Frequency(cpm) 377
Installation model TW-W
Date refers to the shaft only.
IB85wAvailable for order
Material Carbon + Amorphous matal fiber
Kick-point High
Butt diameter(mm) 15.4
Tip diameter(mm) 9.3
Weight(g) 79.0
Torque(°) 2.7
Frequency(cpm) 360
Installation model TW-W
Date refers to the shaft only.

VIZARD I

II75 Available for order
Material Carbon
Kick-point Mid
Flex R SR S
Butt diameter(mm) 15.6 15.7 15.7
Tip diameter(mm) 9.3
Weight(g) 76.5 78.0 79.5
Torque(°) 2.46 2.41 2.36
Frequency(cpm) 295 305 315
Installation model TW727 P
Data refers to the #5.
I65 Available for order
Material Carbon
Kick-point Mid
Flex R SR S
Butt diameter(mm) 15.5 15.6 15.6
Tip diameter(mm) 9.3
Weight(g) 67.0 68.5 70.0
Torque(°) 2.76 2.71 2.66
Frequency(cpm) 289 299 309
Installation model TW727 P
Data refers to the #5.
I55
Material Carbon
Kick-point Mid
Flex R SR S
Butt diameter(mm) 15.2 15.3 15.3
Tip diameter(mm) 9.3
Weight(g) 56.5 58.0 59.5
Torque(°) 3.06 3.01 2.96
Frequency(cpm) 276 286 296
Installation model TW727 P
Data refers to the #5.
