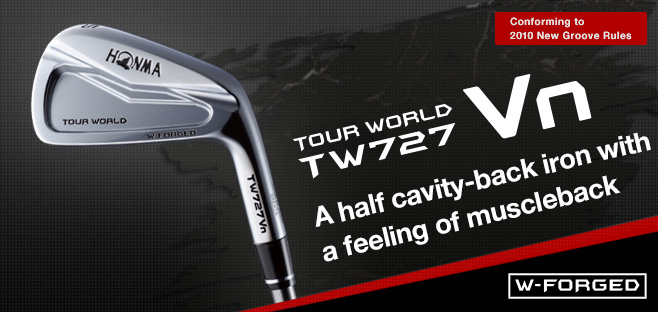

TOUR WORLDTW727VnIron

TOUR WORLD TW727Vn:A half cavity-back iron with a feeling of muscleback.:W-FORGED TOUR WORLD TW727 × VIZARD

MOVIE

Page Top

TECHNOLOGY

TW727 Vn

“Wants to use muscle irons but a bit difficult. For golfers who do not need carry but want to use a compact cavity back with a good sense of hitting.”This model is newly added to the product lineup in response to these needs of spirited golfers.

Features

There were voices from many professionals that they were waiting for the emergence of the 717V with a normal loft. So it is finally commercialized this time through field tests and modifications. The head shape smaller than 717V with normal loft brings about irons without a carry that is too long. The reduced sole width focuses on sharpness and easy-to-address performance, and its compact shape provides ease of use in the same way as the 717M. The W-FORGED method adopts a thick design, which provides the head with a mild sense of hitting, resulting in strong trajectories.

Performing two kinds of forgings methods, first a wave pattern twice in S25C, cold forging then hot forging. This is why we name the model WinningForged.

"It is subdivided, and fiber flow is formed by making a crystal grain face surface (approximately 0.2mm in width) compression, tininess by cold forging and makes it the high strength of the face side, and making it high toughness. Therefore, the repulsion improves along with the thinning of the club head, and escalope thereby leads to flying distance up without compromising the strength of the face. In addition, due to the high strength of the head, even a miss shot at upper face surface will not effect and pull back its function. Double metal structure by W Forged creates a milder ball hitting feeling. Light weighting by the thinning material raises the flexibility of the head design."

Responsive, mild feeling through impact that satisfies the Professional players.

Cross-section view of face surface
High-density face surface with a depth of 0.2mm

No loss of momentum even when hitting with the upper portion of the face

W-FORGED

Smallish head shape which gives the impression of a muscle cavity.

TW727 Vn

Orthodox face side with normal loft angle.

TW727 Vn

The sharp leading edge with added moderate goose neck.

TW727 Vn

Page Top

SPEC TW727Vn

Head material/manufacturing process Mild Steel / Forged
Head plating Half miroor + Mirror Finish / Double-layer Painting
SHAFT VIZARD IB95
Dynamic Gold
# (No.) 3 4 5 6 7 8 9 10
Loft (deg.) 21.0 24.0 27.0 30.0 34.0 38.0 42.0 46.0
Lie angle (deg.) 59.5 60.0 60.5 61.0 61.5 62.0 62.5 63.0
Face progression (mm) 4.00 4.00 4.20 4.70 4.70 4.70 4.90 4.90
Distance to center of gravity (mm) 33.0 33.5 33.5 33.5 33.5 33.5 33.5 34.0
Height to center of gravity (mm) 18.0 19.0 19.0 19.0 19.0 19.0 20.0 20.0
Depth to center of gravity (mm) 3.1 3.1 3.0 2.7 2.5 2.0 1.6 1.4
Gravity angle (deg.) - - 9.7 - - - - -
VIZARD IB95 Length (inches) 39.125 38.625 38.125 37.625 37.125 36.625 36.125 35.625
Swing weight・
Gross weight (g)
S D1
395 401 407 413 420 427 434 441
Dynamic Gold Length (inches) 38.75 38.25 37.75 37.25 36.75 36.25 35.75 35.25
Swing weight・
Gross weight (g)
S200 D2
420 426 433 440 447 455 462 469
Made in Japan

Page Top

SHAFT TW727Vn

Please click here for details of shaft.
  • VIZARD I
  • Dynamic Gold


VIZARD IB95

Material Carbon + Amorphous matal fiber
Kick-point High
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
Flex S
# (No.) 3 4 5 6 7 8 9 10
Gross weight (g) S 94.0 93.0 94.0 93.0 94.0 93.0 93.5 92.5
Torque (deg.) S 3.2 3.1 3.0 2.9 2.8 2.7 2.6 2.5
Frequency (cpm) S 310 319 328 337 346 355 365 375
Data refers to the shaft only

Dynamic Gold

Material Steel
Kick-point High
Butt diameter (mm) 14.7
Tip diameter (mm) 9.0
Flex S
# (No.) 3 4 5 6 7 8 9 10
Gross weight (g) S 129 129 129 129 129 129 129 129
Data is a maker official announcement value

Page Top

GRIP

VIZARD IB95

Name TWRubber M60
Material Rubber
Gross weight (g) 50
Size M60

Dynamic Gold

Name TWRubber M58
Material Rubber
Gross weight (g) 52
Size M58
