TOUR WORLDTW727VIron

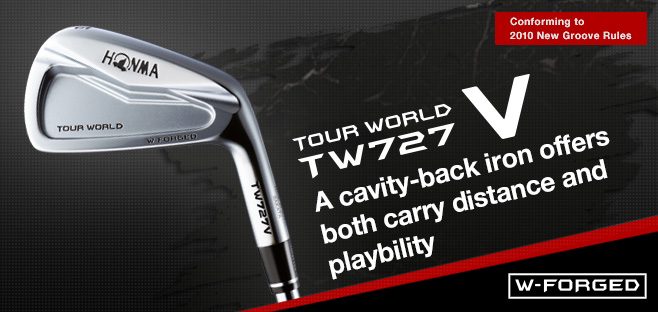

TOUR WORLD TW727V:A cavity-back iron offers both carry distance and playbility.:W-FORGED TOUR WORLD TW727 × VIZARD

MOVIE

Page Top

TECHNOLOGY

TW727 V

Like 717M, this model provides a mild sense of hitting, high spin performance , and excellent control performance, all of which are specific to the muscle back forged mechanism. Considered requests from tournament professional golfers, the top and leading edges are sharp, providing an image of sharper motion with that shape. In addition, making the pocket appearance uniform in a set of golf clubs provides the impression of crushing the ball with the same feeling.

Features

717M has a rounded shape similar to a short iron, whereas 727M has a tough head shape focused on a rectangular impression as a whole from iron #8 along with #7. The forging method adopted a long cooling time, provides a milder sense of hitting. The sharp slits in the toe & heel section drive the motivation for challenging swings.

Performing two kinds of forgings methods, first a wave pattern twice in S25C, cold forging then hot forging. This is why we name the model WinningForged.

"It is subdivided, and fiber flow is formed by making a crystal grain face surface (approximately 0.2mm in width) compression, tininess by cold forging and makes it the high strength of the face side, and making it high toughness. Therefore, the repulsion improves along with the thinning of the club head, and escalope thereby leads to flying distance up without compromising the strength of the face. In addition, due to the high strength of the head, even a miss shot at upper face surface will not effect and pull back its function. Double metal structure by W Forged creates a milder ball hitting feeling. Light weighting by the thinning material raises the flexibility of the head design."

Responsive, mild feeling through impact that satisfies the Professional players.

Cross-section view of face surface
High-density face surface with a depth of 0.2mm

No loss of momentum even when hitting with the upper portion of the face

W-FORGED

The half cavity developed a low center of gravity and slighty large head gives more comfort at address.

TW727 V

Slightly bigger face shape gives more comfort at address.

TW727 V

Neck designe to catch the ball with ease.

TW727 V

Loft angle comparison between Vn and V

TW727 V

Goose rate

TW727 V

Comparison with previous model

Adoptin the W-FORGED method, exceed the former model in easiness of high launch, solid feel and strong trajectory.

Page Top

SPEC TW727V

Head material/manufacturing process Mild Steel / Forged
Head plating Half miroor + Mirror Finish / Double-layer Painting
SHAFT VIZARD IB95
N.S.PRO MODUS3 TOUR120
# (No.) 3 4 5 6 7 8 9 10
Loft (deg.) 20.0 22.0 25.0 28.0 32.0 36.0 41.0 46.0
Lie angle (deg.) 59.5 60.0 60.5 61.0 61.5 62.0 62.5 63.0
Face progression (mm) 3.50 3.50 3.70 4.20 4.20 4.20 4.40 4.40
Distance to center of gravity (mm) 33.5 34.0 34.0 34.5 34.5 34.5 34.5 34.5
Height to center of gravity (mm) 18.0 18.5 18.5 19.0 19.5 19.5 19.5 20.0
Depth to center of gravity (mm) 3.5 3.5 3.2 3.0 2.8 2.5 2.0 1.8
Gravity angle (deg.) - - 9.7 - - - - -
VIZARD IB95 Length (inches) 39.125 38.625 38.125 37.625 37.125 36.625 36.125 35.625
Swing weight・
Gross weight (g)
S D1
395 401 407 413 420 427 434 441
N.S.PRO MODUS3
TOUR120
Length (inches) 38.75 38.25 37.75 37.25 36.75 36.25 35.75 35.25
Swing weight・
Gross weight (g)
S D2
405 411 418 424 431 438 446 455
Made in Japan

Page Top

SHAFT TW727V

Please click here for details of shaft.
  • VIZARD I
  • MODUS3

VIZARD IB95

Material Carbon + Amorphous matal fiber
Kick-point High
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
Flex S
# (No.) 3 4 5 6 7 8 9 10
Gross weight (g) S 94.0 93.0 94.0 93.0 94.0 93.0 93.5 92.5
Torque (deg.) S 3.2 3.1 3.0 2.9 2.8 2.7 2.6 2.5
Frequency (cpm) S 310 319 328 337 346 355 365 375
Data refers to the shaft only

N.S.PRO MODUS3 TOUR120

Material Steel
Kick-point Mid
Butt diameter (mm) 15.24
Tip diameter (mm) 9.02
Flex S
# (No.) 3 4 5 6 7 8 9 10
Gross weight (g) S 114 114 114 114 114 114 114 114
Torque (deg.) S 1.8 1.8 1.7 1.7 1.7 1.6 1.6 1.6
Frequency (cpm) S - - - 315 - - - -
Data is a maker official announcement value

Page Top

GRIP

VIZARD IB95・N.S.PRO MODUS3 TOUR120

Name TWRubber M60
Material Rubber
Gross weight (g) 50
Size M60
