TOUR WORLDTW727PIron

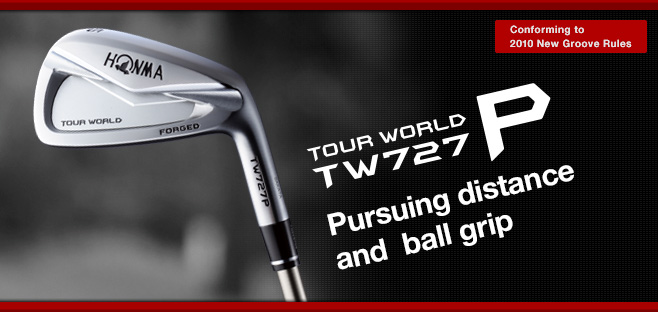

TOUR WORLD TW727P:Pursuing distance and  ball grip. TOUR WORLD TW727 × VIZARD

MOVIE

Page Top

TECHNOLOGY

TW727 460

This has been developed under the concept of a longer carry and easier to hit. The thick top blade head shape with a larger head size provides a sense of ease greater than the previous model. The slightly more intense gooseneck shape brings about strong trajectories. The design with a wide sole width and a shape for smooth motion after the impact, provides both the smooth motion after the impact and the ease of hitting a ball to a high altitude. This model is intended for golfers who want a club that has a sharp looks, and also carries easily.

Features

This model head is little bigger than a previous work and enlarge the sweat area. And having more goose, it makes more easy- to-hit club. The two-piece cavity mechanism inherits the shape of the V to enhance the sense of uniformity with M/V in design. The face thickness of a long iron is 2.4 mm for carry performance. The thickness of the middle iron is 2.7 mm and focused on spin performance and a sense of hitting, both of which allow players to aim at a deadly position to the pin. The #11 and SW has a cavity back integrated mechanism to pursue the functions as a wedge.

Low center of gravity, high MOI head.

TW727 P

Sharp loft angle are not noticeble with a big face shape.

TW727 P

Thicker top blade creates powerful impact.

TW727 V
TW727 P
Semi-goose design for solid grip
A slightly wider, clean-cutting form.
TW727 P
Long iron design emphasizes distance performance, with a face thickness of 2.4mm for improved rebound and greater distance.
Middle iron design emphasizes spin performance and feel on impact, with a face thickness of 2.7mm to enable dead-on targeting of the pin.
11 and SW designs focus solely on wedge functionality, with a unified cavity-back structure for distance stability and spin performance.
TW727 P
Maraging, high-tensile stainless steel
Soft iron
forged body
High-precision center-of –gravity design made possible by CNC processing. By creating a pocket cavity, this club features a deep center of gravity and corresponds to a high moment of inertia.

Comparison with previous model

The head volume is slightly bigger than the former model, and enlarge the sweet spot area.

Page Top

SPEC TW727P

Head material/manufacturing process Mild Steel / Forged
Face material Maraging stainless steel
Head plating Satin finish/Double-layer planting, polished and painted finish(silver)
SHAFT VIZARD IB85,VIZARD I55
N.S.PRO950GH
ARMRQ8 62,ARMRQ8 54
# (No.) 3 4 5 6 7 8 9 10 11 SW
Loft (deg.) 19.0 21.0 24.0 27.0 30.0 34.0 38.0 43.0 49.0 56.0
Lie angle (deg.) 59.5 60.0 60.5 61.0 61.5 62.0 62.5 63.0 63.0 63.5
Face progression (mm) 3.25 3.25 3.55 3.75 4.00 4.25 4.25 4.25 4.75 5.25
Distance to center of gravity (mm) 35.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 35.0 35.0
Height to center of gravity (mm) 20.0 20.0 20.5 21.0 21.5 22.0 22.0 22.5 21.5 21.5
Depth to center of gravity (mm) 4.5 4.5 4.0 4.0 3.5 3.5 3.0 2.5 1.5 1.0
Gravity angle (deg.) - - 11.0 - - - - - - -
VIZARD IB85 Length (inches) 39.125 38.625 38.125 37.625 37.125 36.625 36.125 35.625 35.000 35.000
Swing weight・
Gross weight (g)
S D1 D2
386 392 398 404 410 417 423 430 438 439
VIZARD I55 Length (inches) 39.25 38.75 38.25 37.75 37.25 36.75 36.25 35.75 35.00 35.00
Swing weight・
Gross weight (g)
R D0 D1
359 364 370 376 383 390 397 404 413 415
S D1 D2
364 369 375 381 388 395 402 409 418 420
NS PRO950GH Length (inches) 39.0 38.5 38.0 37.5 37.0 36.5 36.0 35.5 35.0 35.0
Swing weight・
Gross weight (g)
R D1 D2
389 395 401 407 414 421 428 435 441 443
S D2 D3
394 400 406 412 419 426 433 440 446 448
ARMRQ8 62 Length (inches) 39.0 38.5 38.0 37.5 37.0 36.5 36.0 35.5 35.0 35.0
Swing weight R D0 D1
S D1 D2
Gross weight (g) R 363 369 375 381 387 394 401 408 414 415
S 368 374 380 386 392 399 406 413 419 420
ARMRQ8 54 Length (inches) 39.0 38.5 38.0 37.5 37.0 36.5 36.0 35.5 35.0 35.0
Swing weight R D0 D1
S D1 D2
Gross weight (g) R 357 363 369 375 381 388 395 401 408 409
S 362 368 374 380 386 393 400 406 413 414
Made in Japan

GRADE

3S 4S 5S
Please check difference of shaft grade

Page Top

SHAFT TW727P

Please click here for details of shaft.
  • VIZARD IB
  • VIZARD I
  • NS PRO 950GH
  • ARMRQ8

VIZARD IB85

Material Carbon + Amorphous matal fiber
Kick-point High
Butt diameter (mm) 15.6
Tip diameter (mm) 9.3
Flex S
# (No.) 3 4 5 6 7 8 9 10 11 SW
Gross weight (g) S 84.0 83.0 84.0 83.0 84.0 83.0 83.5 82.5 81.5 81.5
Torque (deg.) S 3.4 3.3 3.2 3.1 3.0 2.9 2.8 2.7 2.6 2.6
Frequency (cpm) S 300 308 316 324 332 340 348 356 364 364
Data refers to the shaft only

VIZARD I55

Material Carbon + Amorphous matal fiber
Kick-point Mid
Butt diameter (mm) 15.2
Tip diameter (mm) 9.3
Flex R, S
# (No.) 3 4 5 6 7 8 9 10 11 SW
Gross weight (g) R 56.5 56.0 56.5 56.0 56.5 56.0 56.5 56.0 55.5 55.5
S 58.0 57.5 58.0 57.5 58.0 57.5 58.0 57.5 57.0 57.0
Torque (deg.) R 3.20 3.13 3.06 2.99 2.92 2.85 2.78 2.71 2.64 2.64
S 3.10 3.03 2.96 2.89 2.82 2.75 2.68 2.61 2.54 2.54
Frequency (cpm) R 260 268 276 284 292 300 308 316 324 324
S 280 288 296 304 312 320 328 336 334 334
Data refers to the shaft only

NS PRO 950GH

Material Steel
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 9.02
Flex R,S
# (No.) 3 4 5 6 7 8 9 10 11 SW
Gross weight (g) R 94.5 94.5 94.5 94.5 94.5 94.5 94.5 94.5 94.5 94.5
S 98.0 98.0 98.0 98.0 98.0 98.0 98.0 98.0 98.0 98.0
Torque (deg.) R 2.1 2.1 2.0 2.0 1.9 1.9 1.8 1.8 1.8 1.8
S 2.0 2.0 1.9 1.9 1.8 1.7 1.7 1.6 1.6 1.6
Frequency (cpm) R - - - 315 - - - - - -
S - - - 328 - - - - - -
Data is a maker official announcement value

ARMRQ8 62

Material Carbon+eight-axisUD
Kick-point Mid
Butt diameter (mm) 15.6
Tip diameter (mm) 9.8
Flex R, S
# (No.) 3 4 5 6 7 8 9 10 11 SW
Gross weight (g) R 65.5 64.5 65.5 64.5 65.5 64.5 65.5 64.5 63.5 63.5
S 68.5 67.5 68.5 67.5 68.5 67.5 68.5 67.5 66.5 66.5
Torque (deg.) R 3.00 2.93 2.86 2.79 2.72 2.65 2.58 2.51 2.44 2.44
S 2.90 2.83 2.76 2.69 2.62 2.55 2.48 2.41 2.34 2.34
Frequency (cpm) R 293 302 311 320 329 338 347 356 365 365
S 309 318 327 336 345 354 363 372 381 381
Data refers to the 2S grade/shaft only

ARMRQ8 54

Material Carbon+eight-axisUD
Kick-point Mid
Butt diameter (mm) 15.4
Tip diameter (mm) 9.8
Flex R, S
# (No.) 3 4 5 6 7 8 9 10 11 SW
Gross weight (g) R 58.5 58.0 58.5 58.0 58.5 58.0 58.5 58.0 57.5 57.5
S 61.5 61.0 61.5 61.0 61.5 61.0 61.5 61.0 60.5 60.5
Torque (deg.) R 3.10 3.03 2.96 2.89 2.82 2.75 2.68 2.61 2.54 2.54
S 3.00 2.93 2.86 2.79 2.72 2.65 2.58 2.51 2.44 2.44
Frequency (cpm) R 256 264 272 280 288 296 304 312 320 320
S 272 280 288 296 304 312 320 328 336 336
Data refers to the 2S grade/shaft only

Page Top

GRIP

VIZARD

Name TWRubber M60
Material Rubber
Gross weight (g) 50
Size M60

N.S.PRO950GH

Name TWRubber M62
Material Rubber
Gross weight (g) 47
Size M62
