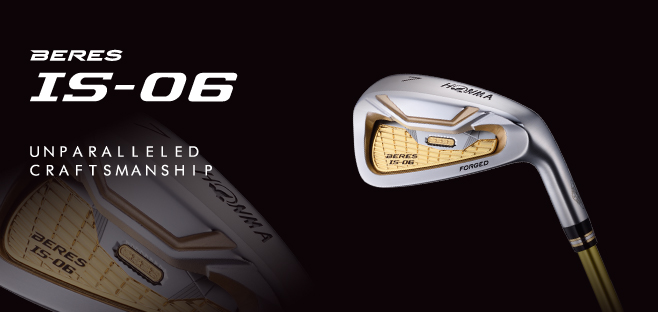

BERESIS-06IRON

MOVIE

Page Top

TECHNOLOGY

New face structure raises flight trajectory

A wide sole flange of the new face structure raises trajectory and increases distance.

This new structure is 12mm wider than the IS-03

※Wide New face structure available in the 4-thru-8-irons.

Face repulsion increases

Three slots on the sole flange are part of wide the new face structure face, which helps increase clubface repulsion.
※available in the 4-thru-8-irons

①:1slot on side of face ②③:2 slots on sole Total 3 slots

※available in the 4-thru-8-irons

Long iron as easy to hit as a hybrid

Long iron has a similar shape, head size and wide sole compared to the hybrids, making them easier to hit.

Sole width: about 2.5mmwider (#4Size comparison)

Head size: about 1.5mmwider (#4Size comparison)

Page Top

SPEC BERES IS-06

Head material / Manufacturing process Mild steel / Forged
Face material / Manufacturing process 4-thru-8-iron Maraging stainless steel (AM355P) /
Wide New face structure lrregular structure
9-iron thru SW Maraging stainless steel (ES235) / Flat face structure
Shaft ARMRQ X 47, ARMRQ X 60, ARMRQ X 52, ARMRQ X 43
# (No.) 4 5 6 7 8 9 10 11 AW SW
Length (inches) 38.5 38.0 37.5 37.0 36.5 36.0 35.5 35.0 35.0 35.0
Loft (deg.) 19.5 22.5 25.5 28.5 32.5 36.5 41.5 46.5 51.5 56.0
Lie angle (deg.) 60.5 61.0 61.5 62.0 62.5 63.0 63.0 63.0 63.0 64.0
Face progression (mm) 2.45 2.75 3.05 3.25 3.25 3.25 3.25 3.75 3.75 4.75
Distance to Center of Gravity (mm) 36.5 37.0 37.5 38.0 38.0 37.0 37.0 37.0 36.5 36.5
Height to Center of Gravity (mm) 19.5 19.5 20.0 20.0 21.0 21.0 21.0 22.0 22.5 22.5
Depth to Center of Gravity (mm) 7.0 7.0 6.5 6.0 5.5 5.0 4.5 4.0 3.5 3.0
Gravity Angle (deg.) - 14.0 - - - - - - - -
Swing weight・
Gross weight (g)
ARMRQ X 47 R C8・350 C8・355 C8・361 C8・367 C8・376 C8・383 C8・393 C8・399 C8・399 C9・401
SR C9・353 C9・358 C9・364 C9・370 C9・379 C9・386 C9・396 C9・402 C9・402 D0・404
S C9・354 C9・359 C9・365 C9・371 C9・380 C9・387 C9・397 C9・403 C9・403 D0・405
ARMRQ X 60 R C9・367 C9・372 C9・379 C9・384 C9・394 C9・400 C9・410 C9・417 C9・417 D0・419
SR D0・370 D0・375 D0・382 D0・387 D0・397 D0・403 D0・413 D0・420 D0・420 D1・422
S D0・371 D0・376 D0・383 D0・388 D0・398 D0・404 D0・414 D0・421 D0・421 D1・423
SX D1・374 D1・379 D1・386 D1・391 D1・401 D1・407 D1・417 D1・424 D1・424 D2・426
X D1・375 D1・380 D1・387 D1・392 D1・402 D1・408 D1・418 D1・425 D1・425 D2・427
ARMRQ X 52 R C9・354 C9・359 C9・366 C9・371 C9・381 C9・387 C9・397 C9・404 C9・404 D0・406
SR D0・357 D0・362 D0・369 D0・374 D0・384 D0・390 D0・400 D0・407 D0・407 D1・409
S D0・358 D0・363 D0・370 D0・375 D0・385 D0・391 D0・401 D0・408 D0・408 D1・410
ARMRQ X 43 R C8・347 C8・352 C8・358 C8・364 C8・373 C8・379 C8・388 C8・395 C8・395 C9・397
S C9・350 C9・355 C9・361 C9・367 C9・376 C9・382 C9・391 C9・398 C9・398 D0・400
Data refers to the 2S grade
Made in Japan
2S 3S 4S
Please check difference of shaft grade

Page Top

SHAFT ARMRQ X

Please click here for details of shaft.

ARMRQ X 47(Standard feature)

Material Carbon + ten-axisUD
Kick-point Low-mid
Flex R,SR,S
Tip diameter (mm) 9.3
# (No.) 4 5 6 7 8 9 10 11 AW SW
Gross weight (g) R 48.5 48.0 48.5 48.0 51.5 51.0 54.5 54.0 54.0 54.0
SR 50.0 49.5 50.0 49.5 53.0 52.5 56.0 55.5 55.5 55.5
S 51.5 51.0 51.5 51.0 54.5 54.0 57.5 57.0 57.0 57.0
Torque (deg.) R 3.45 3.38 3.31 3.24 3.11 3.04 2.91 2.84 2.84 2.84
SR 3.40 3.33 3.26 3.19 3.06 2.99 2.86 2.79 2.79 2.79
S 3.35 3.28 3.21 3.14 3.01 2.94 2.81 2.74 2.74 2.74
Frequency (cpm) R 253 261 269 277 289 297 309 317 317 317
SR 261 269 277 285 297 305 317 325 325 325
S 269 277 285 293 305 313 325 333 333 333
Data refers to the 2S grade/shaft only

ARMRQ X 60

Material Carbon + ten-axisUD
Kick-point High-mid
Flex R,SR,S,SX,X
Tip diameter (mm) 9.3
# (No.) 4 5 6 7 8 9 10 11 AW SW
Gross weight (g) R 62.0 61.0 62.0 61.0 65.0 64.0 68.0 67.0 67.0 67.0
SR 63.5 62.5 63.5 62.5 66.5 65.5 69.5 68.5 68.5 68.5
S 65.0 64.0 65.0 64.0 68.0 67.0 71.0 70.0 70.0 70.0
SX 66.5 65.5 66.5 65.5 69.5 68.5 72.5 71.5 71.5 71.5
X 68.0 67.0 68.0 67.0 71.0 70.0 74.0 73.0 73.0 73.0
Torque (deg.) R 3.15 3.08 3.01 2.94 2.81 2.74 2.61 2.54 2.54 2.54
SR 3.10 3.03 2.96 2.89 2.76 2.69 2.56 2.49 2.49 2.49
S 3.05 2.98 2.91 2.84 2.71 2.64 2.51 2.44 2.44 2.44
SX 3.00 2.93 2.86 2.79 2.66 2.59 2.46 2.39 2.39 2.39
X 2.95 2.88 2.81 2.74 2.61 2.54 2.41 2.34 2.34 2.34
Frequency (cpm) R 303 312 321 330 340 350 361 373 373 373
SR 311 320 329 338 348 358 369 381 381 381
S 319 328 337 346 356 366 377 389 389 389
SX 327 336 345 354 364 374 385 397 397 397
X 335 344 353 362 372 382 393 405 405 405
Data refers to the 2S grade/shaft only

ARMRQ X 52

Material Carbon + ten-axisUD
Kick-point Mid
Flex R,SR,S
Tip diameter (mm) 9.3
# (No.) 4 5 6 7 8 9 10 11 AW SW
Gross weight (g) R 53.5 52.5 53.5 52.5 56.5 55.5 59.5 58.5 58.5 58.5
SR 55.0 54.0 55.0 54.0 58.0 57.0 61.0 60.0 60.0 60.0
S 56.5 55.5 56.5 55.5 59.5 58.5 62.5 61.5 61.5 61.5
Torque (deg.) R 3.25 3.18 3.11 3.04 2.91 2.84 2.71 2.64 2.64 2.64
SR 3.20 3.13 3.06 2.99 2.86 2.79 2.66 2.59 2.59 2.59
S 3.15 3.08 3.01 2.94 2.81 2.74 2.61 2.54 2.54 2.54
Frequency (cpm) R 260 268 276 284 296 304 314 323 323 323
SR 268 276 284 292 304 312 322 331 331 331
S 276 284 292 300 312 320 330 339 339 339
Data refers to the 2S grade/shaft only

ARMRQ X 43

Material Carbon + ten-axisUD
Kick-point Low
Flex R,S
Tip diameter (mm) 9.3
# (No.) 4 5 6 7 8 9 10 11 AW SW
Gross weight (g) R 45.0 44.5 45.0 44.5 48.0 47.5 51.0 50.5 50.5 50.5
S 46.5 46.0 46.5 46.0 49.5 49.0 52.5 52.0 52.0 52.0
Torque (deg.) R 3.89 3.82 3.75 3.68 3.55 3.48 3.35 3.27 3.27 3.27
S 3.84 3.77 3.70 3.63 3.50 3.43 3.30 3.22 3.22 3.22
Frequency (cpm) R 241 248 255 263 271 279 288 298 298 298
S 249 256 263 271 279 287 296 306 306 306
Data refers to the 2S grade/shaft only

Page Top

GRIP

Name BERES RubberⅢ N47 Gold
Material Rubber
Shaft ARMRQ X 47, ARMRQ X 52, ARMRQ X 43
Gross weight (g) 47.0
Size 60

Name BERES Rubber M60 White
Material Rubber
Shaft ARMRQ X 60
Gross weight (g) 49.5
Size 60
Data refers to the 2S grade
