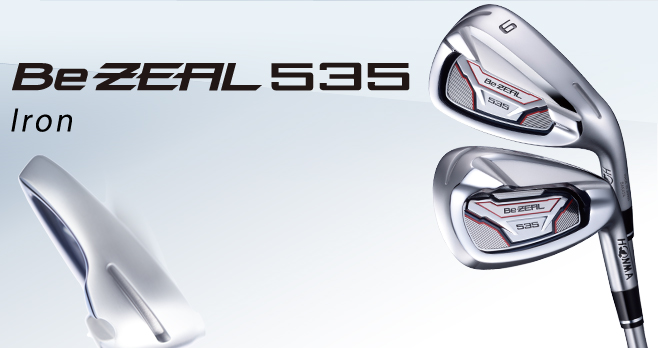

Be ZEAL535IRON

Ensure that golfers who swing the club can feel the performance of the club by five senses

new!

TECHNOLOGY

Evolution1

Repulsion function increase and weight saving on the head

4 slits on the head

4 slits placed on the sole, toe, heel and top blade increases repulsion on the head(2 slits inside of the head)and also effects weigh saving(2 slits outside of the head).

Toe
Blade
Heel
Sole in the cavity

Evolution2

Face repulsion increase & Repulsion area expansion

Face repulsion increase

Adoption of 【HMT titanium face】developed only for HONMA enables to make face thickness 0.1㎜ that increase face repulsion.

HMT titanium face:lighter and stronger than Ti6-4titanium


Joint the head and face

Distance performance increases with expansion of repulsion areas on the face made with reduction of joint area on the face and head.

Face repulsion area expands
(Compared to the previous model 110%)

Evolution3

Low/deep center of gravity

Low/deep center of gravity with Tungsten weights

More trajectory with low/deep center of gravity with placing Tungsten weights, 6g toe side and 3g heel side, in the both side of the cavity.(#4~#10)

Tungsten weights
Heel side 3g
Tungsten weights
Toe side 6g

Evolution4

That provide easy-to-address and better control

Evolution of head size

Evolution of head side reviewed from previous model that increases better control.

■Compared to the previous model

Head length:-1.0㎜ ⇒ Better control
Head height:-0.5㎜ ⇒ Low center of gravity
Sole width:+1.0㎜ ⇒ Deep center of gravity
Low/deep center of gravity provides
forgiveness and better control!

Even though easy big head is, sharpness is emphasized with round on the toe that leads to “Easy-to-address” when address.


Head finish

Plaiting on the titanium face with HONMA original plaiting skill could not be done by other competitors.
Coefficient of friction is lower and easy to swing off due to the sole shape.
Strength and durability of head increases and also presence as “product” effectively fills customers’desire.


A new VIZARD shaft was developed for Be ZEAL

Our power of development that satisfies professionals is put into achieving amateur golfers' full potential.

Design technology to "Effectively" convey power to the ball

Evolution1

Head speed increase!

5㎜ lower kick-point & 9㎜ higher kick-point(compared to the previous model)

4㎜ lower kick-point & 7㎜ higher kick-point(compared to the previous model)

Evolution2

Easy to take timing for wide range of golfers!

The design is for wide range of targets and the rigidity in the shaft high-point increases. Higher launch angle.

Evolution3

Reduction of power loss!

Adoption of TORAYCA® prepregs prevents power loss of when mishit at minimum.

EPT-Tech(Efficient Power Transmission Technology)

CAE of TORAY(Computer Aided Engineering) analysis technology was used to co-develop low/high-kick-point with TORAY Inc., the world's largest carbon fiber supplier. The best material including “a vibration damping material” was selected from 100 carbon fiber TORAYCA® prepreg with plenty of design simulation on data. Moreover, as the result of HONMA’s tests and careful consideration, this shaft was developed that effectively brings out the potential of a wide range of amateur golfers.

※TORAYCA® is the registered trademark of Toray industries.

Page Top

SPEC Be ZEAL 535

Head material / Manufacturing process SUS630(body)・HMT Titanium(face) / Casting(body)・Rolling(face)
Head plating Chrome plating + Satin finish + Polish + Painting finish
#(No.) 4 5 6 7 8 9 10 11 AW SW
Loft(deg.) 19.5 22.5 25.5 28.5 32.5 36.5 41.5 46.5 51.5 56.0
Lie angle(deg.) 60.5 61.0 61.5 62.0 62.5 63.0 63.0 63.0 63.0 63.5
VIZARD for Be ZEAL Length(inches) 38.5 38.0 37.5 37.0 36.5 36.0 35.5 35.0 35.0 35.0
Swing weight・
Gross weight(g)
R C9・351 C9・357 C9・363 C9・369 C9・375 C9・381 C9・388 C9・393 C9・393 D0・395
SR D0・355 D0・361 D0・367 D0・373 D0・379 D0・385 D0・392 D0・397 D0・397 D1・399
S D0・356 D0・362 D0・368 D0・374 D0・380 D0・386 D0・393 D0・398 D0・398 D1・400
NS PRO950GH Length(inches) 38.25 37.75 37.25 36.75 36.25 35.75 35.25 35.0 35.0 35.0
Swing weight・
Gross weight(g)
R D1・389 D1・395 D1・401 D1・408 D1・415 D1・422 D1・430 D1・432 D1・432 D2・434
S D2・394 D2・400 D2・406 D2・413 D2・420 D2・427 D2・435 D2・437 D2・437 D3・439
Made in Japan

Page Top

SHAFT VIZARD for Be ZEAL

  • VIZARD I
  • NS PRO950GH

VIZARD for Be ZEAL

Material Carbon + Vibration damping material
Kick-point Low-Mid
Flex R,SR,S
#(No.) 4 5 6 7 8 9 10 11 AW SW
Gross weight(g) R 51.5 52.0 51.5 52.0 51.5 52.0 51.5 50.5
SR 53.0 53.5 53.0 53.5 53.0 53.5 53.0 52.0
S 54.5 55.5 54.5 55.5 54.5 55.5 54.5 53.5
Torque(deg.) R 3.97 3.90 3.83 3.76 3.69 3.62 3.55 3.48
SR 3.92 3.85 3.78 3.71 3.64 3.57 3.50 3.43
S 3.87 3.80 3.73 3.66 3.59 3.52 3.45 3.38
Frequency(cpm) R 254 262 270 278 286 294 302 310
SR 262 270 278 286 294 302 310 318
S 270 278 286 294 302 310 318 326
※Data refers to the shaft only

NS PRO950GH

Material Steel
Kick-point Mid
Butt diameter(mm) 15.5
Tip diameter(mm) 9.02
Flex R,S
#(No.) 4 5 6 7 8 9 10 11 AW SW
Gross weight(g) R 94.5 94.5 94.5 94.5 94.5 94.5 94.5 94.5 94.5 94.5
S 98.0 98.0 98.0 98.0 98.0 98.0 98.0 98.0 98.0 98.0
Torque(deg.) R 2.1 2.0 2.0 1.9 1.9 1.8 1.8 1.8 1.8 1.8
S 2.0 1.9 1.9 1.8 1.7 1.7 1.6 1.6 1.6 1.6
Frequency(cpm) R - - 315 - - - - - - -
S - - 328 - - - - - - -
※Data is a maker official announcement value
