TOUR WORLDTW737 445DRIVER

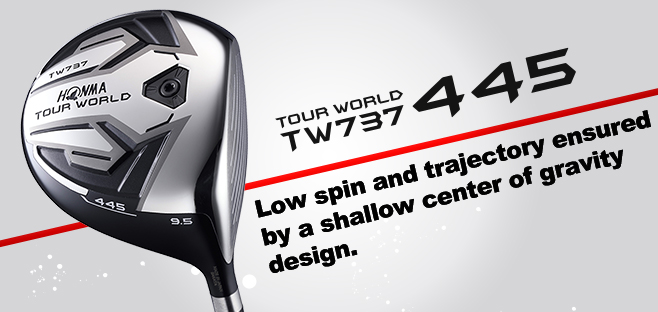

TOUR WORLD TW737 445:Low spin and trajectory ensured by a shallow center of gravity design. TOUR WORLD TW727 × VIZARD

MOVIE

Page Top

TECHNOLOGY

The club which produces maximum flying distances

TW737 445 Driver

High Velocity×Low Spin×Reduces pulls=You can hit the ball HARD

Shape The pear profile contains a thick wall at the center of the crown.
The shape provides long carry and produces a major deflection of the crown.
Center of Gravity Design The shallow center of gravity design fits the inside out swing, which is often seen with professional golfers, provides the adequate launch and spin rate.
Face The grain flow forged cup face produces the maximum
initial launch speed in conjunction with the head deflection.

Grain-Flow Forged Cup Face Fast ball release is the best feature.

The 445’s cup face was designed to minimize golfers who have the tendency to hit their drives left.

By setting the grain flow in the vertical direction creates a high density and enhances rigidity.
Surplus weight is born by the thinning of the face piece, and it has expanded the flexibility in the design.

Body: 811 titanium(Casting)
Face: 6-4 titanium
Shallow center of gravity (8g weight)
Redistribution of weight from the thin crown
0.6㎜ Rib
0.55㎜
A thin crown with a partial wall thickness of 0.6mm and 0.55mm allows redistribution of surplus weight to the sole
High back shape

Page Top

SPEC TW737 445

Head material / manufacturing process 811 titanium / Casting
Face material / manufacturing process Ti6-4 titanium / Forged
SHAFT

VIZARD EX-A,EX-C,EX-Z

Length (inches)

45.5

Loft (deg.) 9.5 10.5
Head volume (cm3) 457
Lie angle (deg.) 58.5
Distance to center of gravity (mm) 40.0 40.5
Height to center of gravity (mm) 33.0 33.5
Depth to center of gravity (mm) 35.5 36.0
Gravity angle (deg.) 20.5 20.0
Swing weight・
Gross weight (g)
VIZARD EX-A75 S D2・323
X D3・327
VIZARD EX-A65 SR D2・315
S D2・316
X D3・320
VIZARD EX-A55 R D1・306
SR D2・309
S D2・310
VIZARD EX-C75 S D2・321
X D3・325
VIZARD EX-C65 SR D2・314
S D2・315
X D3・319
VIZARD EX-C55 R D1・305
SR D2・308
S D2・309
VIZARD EX-Z75 S D2・322
X D3・326
VIZARD EX-Z65 SR D2・315
S D2・316
X D3・320
VIZARD EX-Z55 R D1・306
SR D2・309
S D2・310
Made in Japan

Page Top

SHAFT TW737 445

Please click here for details of shaft.
  • YA
  • YC
  • TZ

VIZARD EX-A75

Material Carbon
Kick-point Mid
Butt diameter (mm) S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 73.5
X 76.5
Torque (deg.) S 3.4
X 3.3
Frequency (cpm) S 291
X 307
Data refers to the 1W shaft only

VIZARD EX-A65

Material Carbon
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 64.0
S 65.5
X 68.5
Torque (deg.) SR 3.90
S 3.85
X 3.75
Frequency (cpm) SR 281
S 289
X 305
Data refers to the 1W shaft only

VIZARD EX-A55

Material Carbon
Kick-point Mid
Butt diameter (mm) R 15.3
SR 15.3
S 15.4
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 54.5
SR 56.0
S 57.5
Torque (deg.) R 4.35
SR 4.30
S 4.25
Frequency (cpm) R 256
SR 264
S 272
Data refers to the 1W shaft only

VIZARD EX-C75

Material Carbon
Kick-point Mid
Butt diameter (mm) S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 72.5
X 75.5
Torque (deg.) S 3.4
X 3.3
Frequency (cpm) S 286
X 302
Data refers to the 1W shaft only

VIZARD EX-C65

Material Carbon
Kick-point Mid
Butt diameter (mm) SR 15.4
S 15.4
X 15.5
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 63.5
S 65.0
X 68.0
Torque (deg.) SR 3.90
S 3.85
X 3.75
Frequency (cpm) SR 276
S 284
X 300
Data refers to the 1W shaft only

VIZARD EX-C55

Material Carbon
Kick-point Mid
Butt diameter (mm) R 15.1
SR 15.1
S 15.2
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 53.5
SR 55.0
S 56.5
Torque (deg.) R 4.35
SR 4.30
S 4.25
Frequency (cpm) R 254
SR 262
S 270
Data refers to the 1W shaft only

VIZARD EX-Z75

Material Carbon
Kick-point High
Butt diameter (mm) S 15.7
X 15.8
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 74.5
X 77.5
Torque (deg.) S 3.35
X 3.25
Frequency (cpm) S 285
X 301
Data refers to the 1W shaft only

VIZARD EX-Z65

Material Carbon
Kick-point High
Butt diameter (mm) SR 15.5
S 15.5
X 15.6
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 65.5
S 67.0
X 70.0
Torque (deg.) SR 3.85
S 3.80
X 3.70
Frequency (cpm) SR 275
S 283
X 299
Data refers to the 1W shaft only

VIZARD EX-Z55

Material Carbon
Kick-point High
Butt diameter (mm) R 15.1
SR 15.1
S 15.2
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 55.5
SR 57.0
S 58.5
Torque (deg.) R 4.30
SR 4.25
S 4.20
Frequency (cpm) R 253
SR 261
S 269
Data refers to the 1W shaft only

Page Top

GRIP

Name TWRubber
Material Rubber
Gross weight (g) 49.5
Size M60
