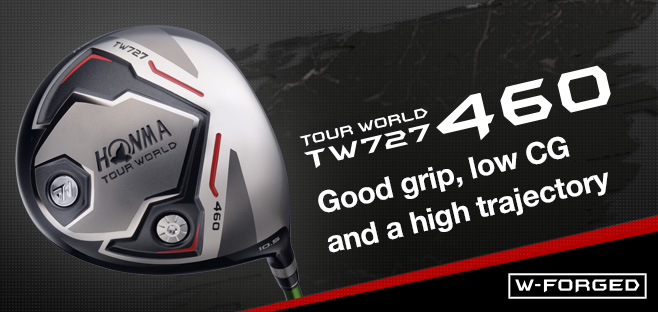

TOUR WORLD TW727 460:Good grip, low CG and a high trajectory.:W-FORGED TOUR WORLD TW727 × VIZARD

MOVIE

Page Top

TECHNOLOGY

TW727 460

As from the previous model, this model focuses on a sense of ease at address, high trajectories, and a long carry distance. The center-of-gravity design with emphasis on the catch performance and a structure with a low FP make the driver easier to use.

Features

Adopted high-density forged face “W-Forged” face enhances maximum carry performance. The large head with a low/deep center-of-gravity design and the shallow back shape brings a high launch angle and a stable spin rate, resulting in an easy-to-use driver for all kinds of players.

Using the Industry’s First high-density forging method gives greater design flexibility.

The high-density forging process maintains hardness but increases strength by about 15%. This results in saving 2g weight which allows greater freedom of design.

New variable thickness design face offers an expanded sweet spot

Proprietary variable thickness design generates the right amount of rebound across a wide area, resulting in an expanded sweet spot.

W-FORGED

Advantages of W-FORGED

■Expand sweet spot area and improves the hitting feeling.

TW727 460
Crown:0.5mm
KS100 titanium
Sole:
KS100 titanium
10g of extra weight added to provide optimal CG placement
W-FORGED Expands sweet spot area and gives better hitting feeling
Hosel:
Pure titanium

Crown

The shallow back shape with an effective deflection helps increase the sense of ease and carry.

TW727 460:Crown

Sole

Aiming at a deeper center of gravity and better catching performance, load objects of 10g and heel weights of 4g built in.

TW727 460:Sole
4g heel weight provides playability and a deeper CG,stabilizing ball trajectory.

Face

With the face with a new shape produced by a new forging method, the CT value distribution expands, providing a constant carry distance.

TW727 460:Face

Comparison with previous model

Large head design to hit a stable trajectory and long carry distance.

Page Top

SPEC TW727 460

Head material/manufacturing process Sole/crown KS100 titanium/forged
Face material/manufacturing process ELF titanium/high-density forged
SHAFT VIZARD
YA75,YA65,YA55,YC75,YC65,YC55,YZ75,YZ65,YZ55
ARMRQ8 62,ARMRQ8 54
Length (inches) 45.5
Loft (deg.) 9.5 10.5
Head volume(cm3 460
Lie angle (deg.) 59.0
Distance to center of gravity (mm) 39.5
Height to center of gravity (mm) 35.5
Depth to center of gravity (mm) 38.0
Gravity angle (deg.) 25.0
Swing weight・
Gross weight (g)
VIZARD YA75 S D2・321
X D3・324
VIZARD YA65 SR D2・314
S D2・315
X D3・318
VIZARD YA55 R D1・306
SR D2・309
S D2・310
VIZARD YC75 S D2・321
X D3・324
VIZARD YC65 SR D2・314
S D2・315
X D3・318
VIZARD YC55 R D1・305
SR D2・308
S D2・309
VIZARD YZ75 S D2・322
X D3・325
VIZARD YZ65 SR D2・314
S D2・315
X D3・318
VIZARD YZ55 R D1・306
SR D2・309
S D2・310
ARMRQ8 62 R D1・311
S D2・315
ARMRQ8 54 R D1・304
S D2・308
Made in Japan

GRADE

3S 4S 5S
Please check difference of shaft grade

Page Top

SHAFT TW727 460

Please click here for details of shaft.
  • YA
  • YC
  • TZ
  • ARMRQ8

VIZARD YA75

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) S 15.7
X 15.8
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 71.5
X 74.5
Torque (deg.) S 3.45
X 3.35
Frequency (cpm) S 289
X 305
Data refers to the 1W shaft only

VIZARD YA65

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 62.5
S 64.0
X 67.0
Torque (deg.) SR 3.90
S 3.85
X 3.75
Frequency (cpm) SR 279
S 287
X 303
Data refers to the 1W shaft only

VIZARD YA55

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) R 15.4
SR 15.4
S 15.5
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 54.0
SR 55.5
S 57.0
Torque (deg.) R 4.35
SR 4.30
S 4.25
Frequency (cpm) R 258
SR 266
S 274
Data refers to the 1W shaft only

VIZARD YC75

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) S 15.7
X 15.8
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 71.5
X 74.5
Torque (deg.) S 3.45
X 3.35
Frequency (cpm) S 282
X 298
Data refers to the 1W shaft only

VIZARD YC65

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 62.5
S 64.0
X 67.0
Torque (deg.) SR 3.90
S 3.85
X 3.75
Frequency (cpm) SR 272
S 280
X 296
Data refers to the 1W shaft only

VIZARD YC55

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) R 15.4
SR 15.4
S 15.5
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 53.0
SR 54.5
S 56.0
Torque (deg.) R 4.35
SR 4.30
S 4.25
Frequency (cpm) R 252
SR 260
S 268
Data refers to the 1W shaft only

VIZARD YZ75

Material Carbon + YARN
Kick-point High
Butt diameter (mm) S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 73.5
X 76.5
Torque (deg.) S 3.40
X 3.30
Frequency (cpm) S 282
X 298
Data refers to the 1W shaft only

VIZARD YZ65

Material Carbon + YARN
Kick-point High
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 63.5
S 65.0
X 68.0
Torque (deg.) SR 3.85
S 3.80
X 3.70
Frequency (cpm) SR 269
S 277
X 293
Data refers to the 1W shaft only

VIZARD YZ55

Material Carbon + YARN
Kick-point High
Butt diameter (mm) R 15.5
SR 15.5
S 15.6
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 56.0
SR 57.5
S 59.0
Torque (deg.) R 4.30
SR 4.25
S 4.20
Frequency (cpm) R 254
SR 262
S 270
Data refers to the 1W shaft only

ARMRQ8 62

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Flex R,S
Gross weight (g) R 63.0
S 66.0
Torque (deg.) R 3.75
S 3.65
Frequency (cpm) R 273
S 289
Data refers to the 2S grade/1W shaft only

ARMRQ8 54

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Flex R,S
Gross weight (g) R 54.5
S 57.5
Torque (deg.) R 4.00
S 3.90
Frequency (cpm) R 255
S 271
Data refers to the 2S grade/1W shaft only

Page Top

GRIP

Name TWRubber M60 White
Material Rubber
Gross weight (g) 49.5
Size M60
