TOUR WORLDTW727 455sDRIVER

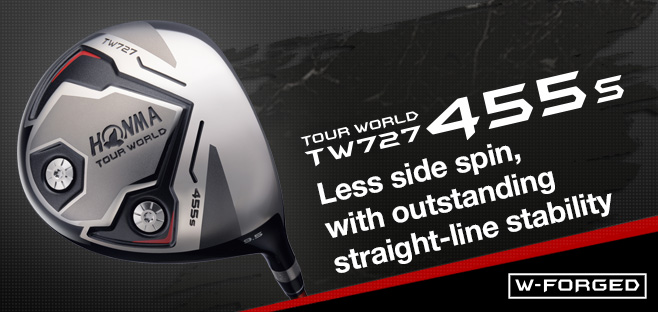

TOUR WORLD TW727 455s:Less side spin, with outstanding straight-line stability.:W-FORGED TOUR WORLD TW727 × VIZARD

MOVIE

Page Top

TECHNOLOGY

TW727 455s

For golfers who do not prefer a large head, and want to use a sharp head that looks as easy-to-use as possible. The spot is also well set up and high trajectory of the ball is also one of the desired points. For golfers who want a constant carry and directionality.

Features

The head in a semi-back shape with a larger projected area, provides easy address. The design with a low/deep center of gravity allows players to hit a ball with an appropriate spin rate and high trajectory.

Using the Industry’s First high-density forging method gives greater design flexibility.

The high-density forging process maintains hardness but increases strength by about 15%. This results in saving 2g weight which allows greater freedom of design.

New variable thickness design face offers an expanded sweet spot

Proprietary variable thickness design generates the right amount of rebound across a wide area, resulting in an expanded sweet spot.

W-FORGED

Advantages of W-FORGED

■Expand sweet spot area and improves the hitting feeling.

TW727 455s
Crown:
0.5mm
KS100 titanium
Sole:
KS100 titanium
10g of extra weights added in two locations to provide optimal CG placement
W-FORGED Expands sweet spot area and gives better hitting feeling
Hosel:
Pure titanium

Crown

The adopted semi-back shape with a larger projected area provides both sharpness and a sense of easy.

TW727 455s:Crown

Sole

The load objects of approx. 10g at two points and the weight screw of 4g on the side and the heel provide the deeper center of gravity and higher usability,

TW727 455s:Sole
Weights on the side (4g) and heel (4g) totaling 8g provide playability and a deeper CG, stabilizing ball trajectory.

Face

With the face with a new shape produced by a new forging method, the CT value distribution expands, providing a constant carry.

TW727 455s:Face

Page Top

SPEC TW727 455s

Head material/manufacturing process Sole/crown KS100 titanium/forged
Face material/manufacturing process ELF titanium/high-density forged
SHAFT VIZARD
YA75,YA65,YA55,YC75,YC65,YC55,YZ75,YZ65,YZ55
ARMRQ8 62,ARMRQ8 54
Length (inches) 45.5
Loft (deg.) 9.5 10.5
Head volume(cm3 455
Lie angle (deg.) 59.0
Distance to center of gravity (mm) 39.5
Height to center of gravity (mm) 34.5
Depth to center of gravity (mm) 41.5
Gravity angle (deg.) 27.0
Swing weight・
Gross weight (g)
VIZARD YA75 S D2・321
X D3・324
VIZARD YA65 SR D2・314
S D2・315
X D3・318
VIZARD YA55 R D1・306
SR D2・309
S D2・310
VIZARD YC75 S D2・321
X D3・324
VIZARD YC65 SR D2・314
S D2・315
X D3・318
VIZARD YC55 R D1・305
SR D2・308
S D2・309
VIZARD YZ75 S D2・322
X D3・325
VIZARD YZ65 SR D2・314
S D2・315
X D3・318
VIZARD YZ55 R D1・306
SR D2・309
S D2・310
ARMRQ8 62 R D1・311
S D2・315
ARMRQ8 54 R D1・304
S D2・308
Made in Japan

GRADE

3S 4S
Please check difference of shaft grade

Page Top

SHAFT TW727 455s

Please click here for details of shaft.
  • YA
  • YC
  • TZ
  • ARMRQ8

VIZARD YA75

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) S 15.7
X 15.8
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 71.5
X 74.5
Torque (deg.) S 3.45
X 3.35
Frequency (cpm) S 289
X 305
Data refers to the 1W shaft only

VIZARD YA65

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 62.5
S 64.0
X 67.0
Torque (deg.) SR 3.90
S 3.85
X 3.75
Frequency (cpm) SR 279
S 287
X 303
Data refers to the 1W shaft only

VIZARD YA55

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) R 15.4
SR 15.4
S 15.5
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 54.0
SR 55.5
S 57.0
Torque (deg.) R 4.35
SR 4.30
S 4.25
Frequency (cpm) R 258
SR 266
S 274
Data refers to the 1W shaft only

VIZARD YC75

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) S 15.7
X 15.8
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 71.5
X 74.5
Torque (deg.) S 3.45
X 3.35
Frequency (cpm) S 282
X 298
Data refers to the 1W shaft only

VIZARD YC65

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 62.5
S 64.0
X 67.0
Torque (deg.) SR 3.90
S 3.85
X 3.75
Frequency (cpm) SR 272
S 280
X 296
Data refers to the 1W shaft only

VIZARD YC55

Material Carbon + YARN
Kick-point Mid
Butt diameter (mm) R 15.4
SR 15.4
S 15.5
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 53.0
SR 54.5
S 56.0
Torque (deg.) R 4.35
SR 4.30
S 4.25
Frequency (cpm) R 252
SR 260
S 268
Data refers to the 1W shaft only

VIZARD YZ75

Material Carbon + YARN
Kick-point High
Butt diameter (mm) S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex S,X
Gross weight (g) S 73.5
X 76.5
Torque (deg.) S 3.40
X 3.30
Frequency (cpm) S 282
X 298
Data refers to the 1W shaft only

VIZARD YZ65

Material Carbon + YARN
Kick-point High
Butt diameter (mm) SR 15.6
S 15.6
X 15.7
Tip diameter (mm) 8.6
Flex SR,S,X
Gross weight (g) SR 63.5
S 65.0
X 68.0
Torque (deg.) SR 3.85
S 3.80
X 3.70
Frequency (cpm) SR 269
S 277
X 293
Data refers to the 1W shaft only

VIZARD YZ55

Material Carbon + YARN
Kick-point High
Butt diameter (mm) R 15.5
SR 15.5
S 15.6
Tip diameter (mm) 8.6
Flex R,SR,S
Gross weight (g) R 56.0
SR 57.5
S 59.0
Torque (deg.) R 4.30
SR 4.25
S 4.20
Frequency (cpm) R 254
SR 262
S 270
Data refers to the 1W shaft only

ARMRQ8 62

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Flex R,S
Gross weight (g) R 63.0
S 66.0
Torque (deg.) R 3.75
S 3.65
Frequency (cpm) R 273
S 289
Data refers to the 2S grade/1W shaft only

ARMRQ8 54

Material Carbon
Kick-point Mid
Butt diameter (mm) 15.5
Tip diameter (mm) 8.6
Flex R,S
Gross weight (g) R 54.5
S 57.5
Torque (deg.) R 4.00
S 3.90
Frequency (cpm) R 255
S 271
Data refers to the 2S grade/1W shaft only

Page Top

GRIP

Name TWRubber M60 White
Material Rubber
Gross weight (g) 49.5
Size M60
